Loging into a Linux Server Connected to Azure Arc Using Entra ID from portal and OpenSSH client

Description

Azure Arc extends the power of Azure to your on-premises and multi-cloud environments. One great feature it enables is logging into Linux servers using Entra ID (formerly Azure AD). This provides centralized identity management, RBAC, and conditional access for your Linux infrastructure. In this post, I’ll walk you through how to enable and use Entra ID to log in to a Linux server connected to Azure Arc.

Distribution	Version
AlmaLinux	AlmaLinux 8, AlmaLinux 9
Azure Linux (formerly known as Common Base Linux Mariner)	CBL-Mariner 2.0, Azure Linux 3.0
Debian	Debian 9, Debian 10, Debian 11, Debian 12
openSUSE	openSUSE Leap 42.3, openSUSE Leap 15.1 to 15.5, openSUSE Leap 15.6+
Oracle	Oracle Linux 8, Oracle Linux 9
RedHat Enterprise Linux (RHEL)	RHEL 7.4 to RHEL 7.9, RHEL 8.3+, RHEL 9.0+
Rocky	Rocky 8, Rocky 9
SUSE Linux Enterprise Server (SLES)	SLES 12, SLES 15.1 to 15.5, SLES 15.6+
Ubuntu	Ubuntu 16.04 to Ubuntu 24.04

Prerequisites

• A Linux server connected to Azure Arc.
• Azure CLI installed.
• You are an Entra ID user with at least Virtual Machine User Login role.
• Azure Connected Machine agent is installed and running.

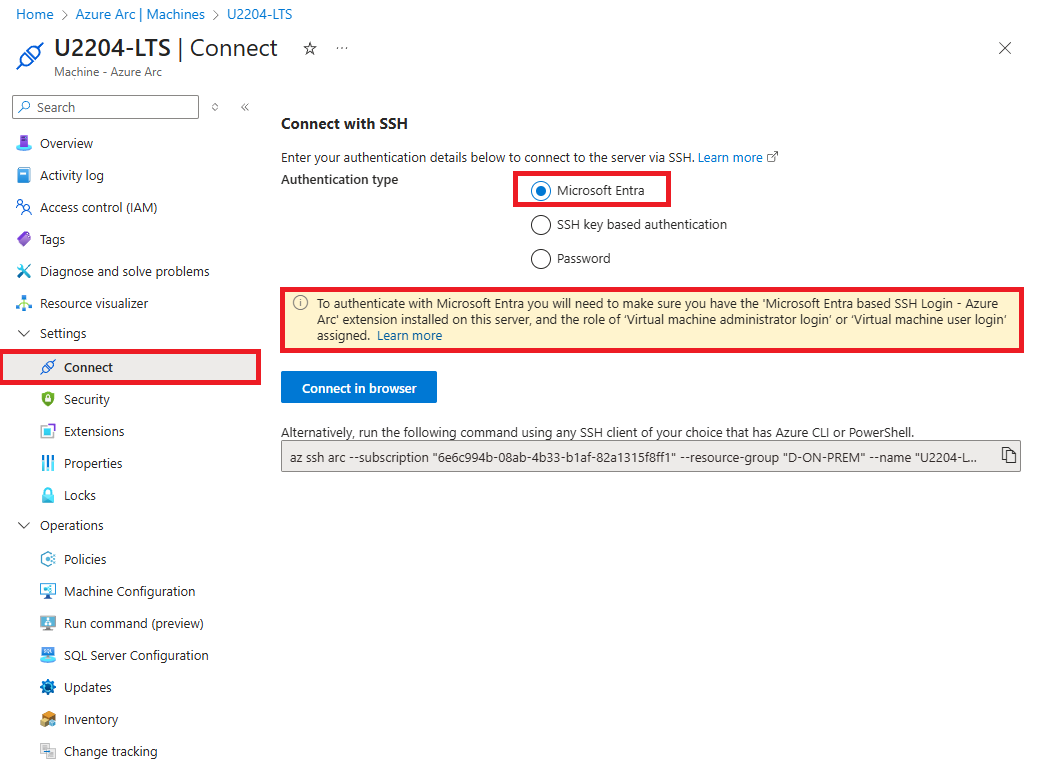

Step 1: Enable Entra ID Login on the Arc-Enabled Server

az connectedmachine extension create \
  --machine-name <server-name> \
  --resource-group <resource-group> \
  --location <location> \
  --name AADSSHLoginForLinux \
  --publisher Microsoft.Azure.ActiveDirectory \
  --type AADSSHLoginForLinux \
  --type-handler-version 1.0

Note: Replace server-name, resource-group, and location with appropriate values.

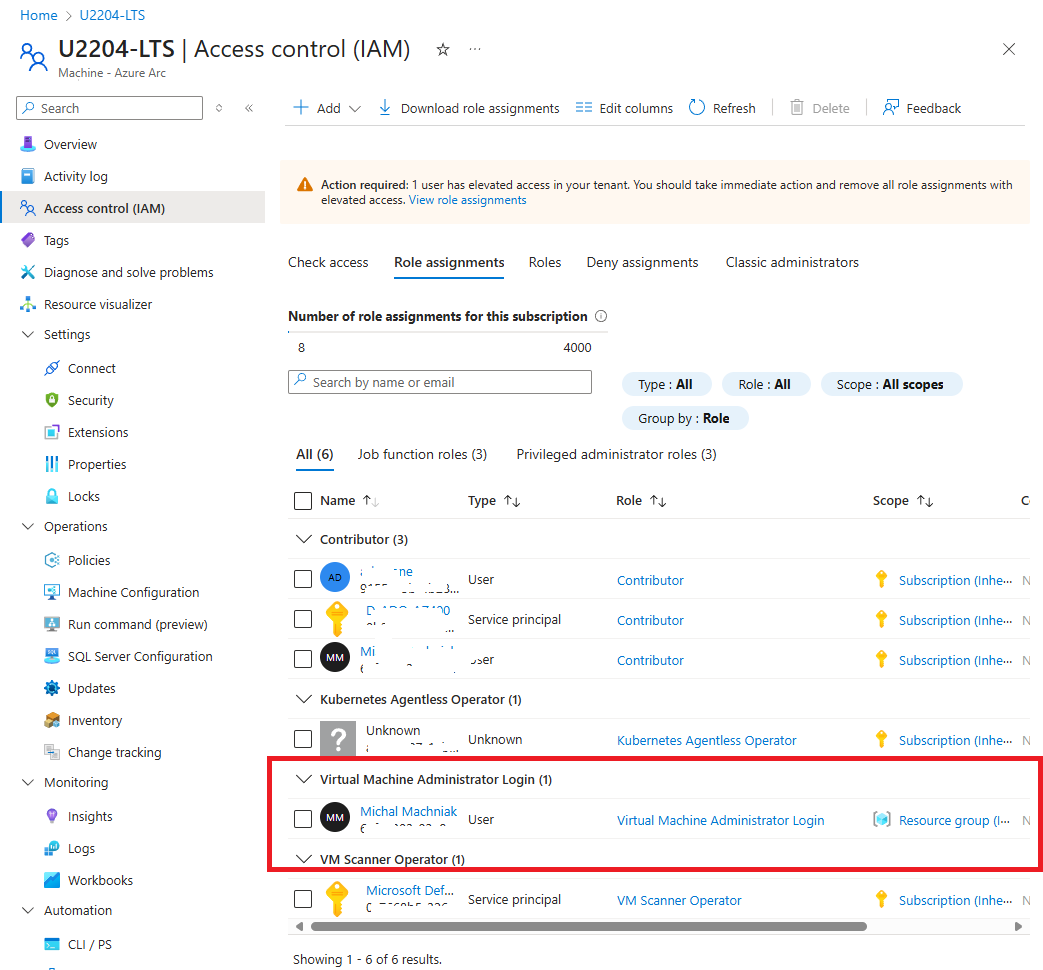

Step 2: Assign Entra ID Role

Assign the Virtual Machine User Login role (or Virtual Machine Administrator Login if you need sudo access) to a user or group for the connected machine resource:

az role assignment create \
  --assignee <user-object-id or user-UPN> \
  --role "Virtual Machine User Login" \
  --scope "/subscriptions/<sub-id>/resourceGroups/<resource-group>/providers/Microsoft.HybridCompute/machines/<server-name>"

Step 3: Install AAD Login Extension (if not already installed)

Check if the extension is installed:

ls /var/lib/waagent/custom-script/

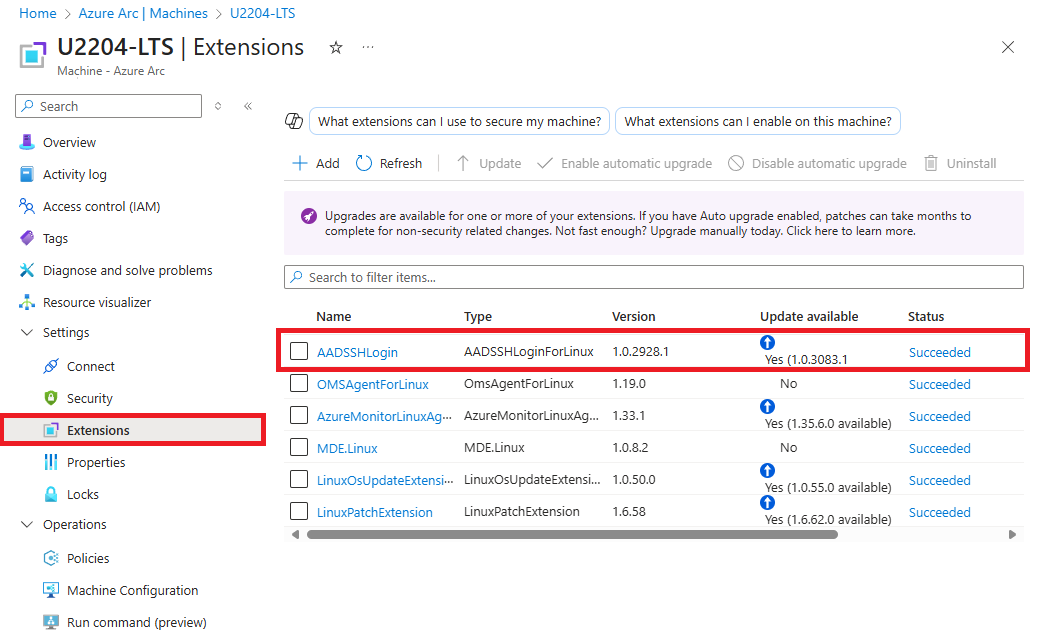

You can also verify via the Azure portal under the “Extensions + applications” blade of the Arc server.

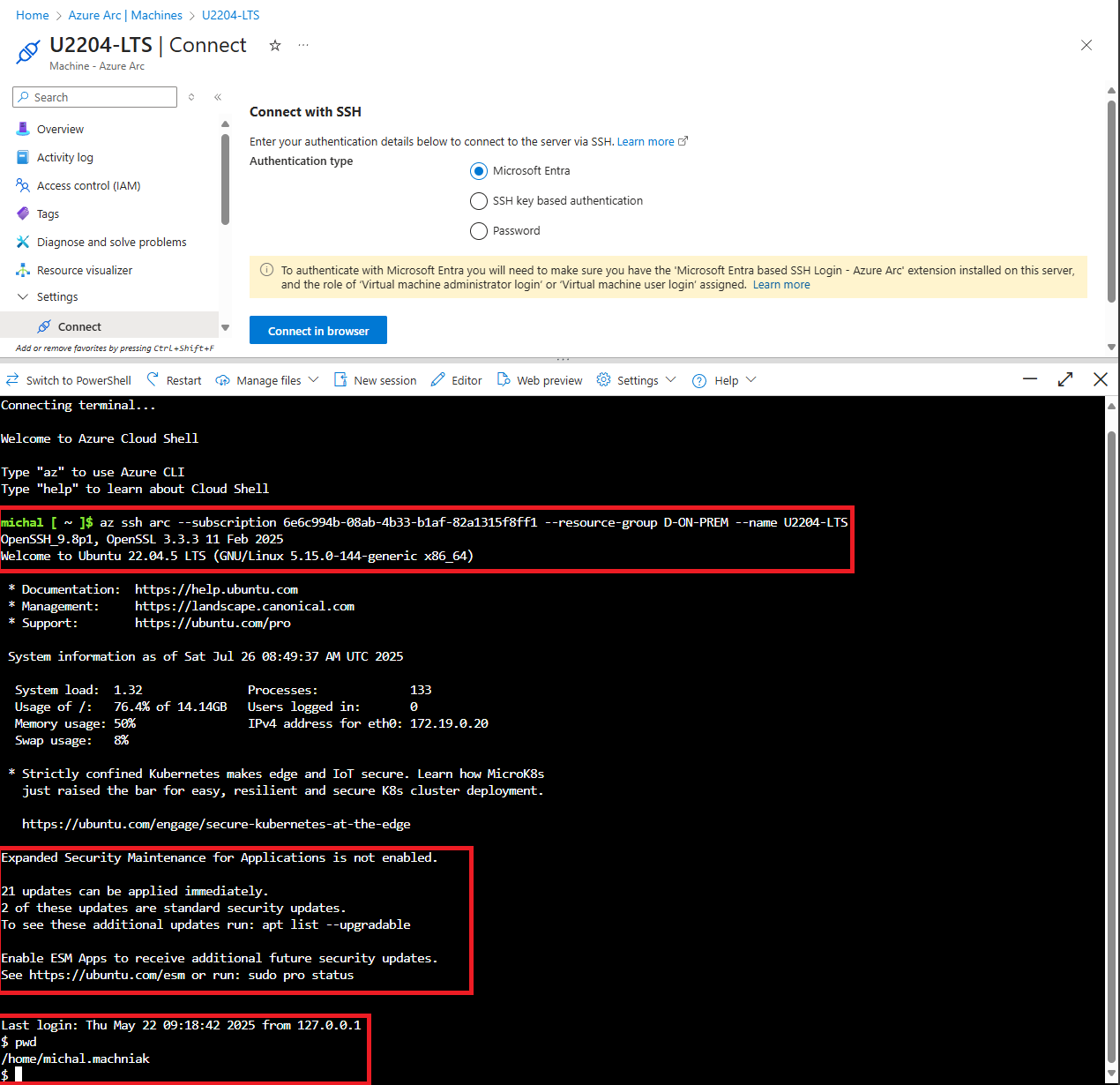

Step 4: Login to the Server Using az ssh or ssh with AAD

If using the Azure CLI az ssh command:

az ssh arc --subscription <subscription-id> --resource-group <resource-group> --name <server-name>

Alternatively, sign in to Azure Linux VMs with Microsoft Entra ID supports exporting the OpenSSH certificate and configuration. That means you can use any SSH clients that support OpenSSH-based certificates to sign in through Microsoft Entra ID

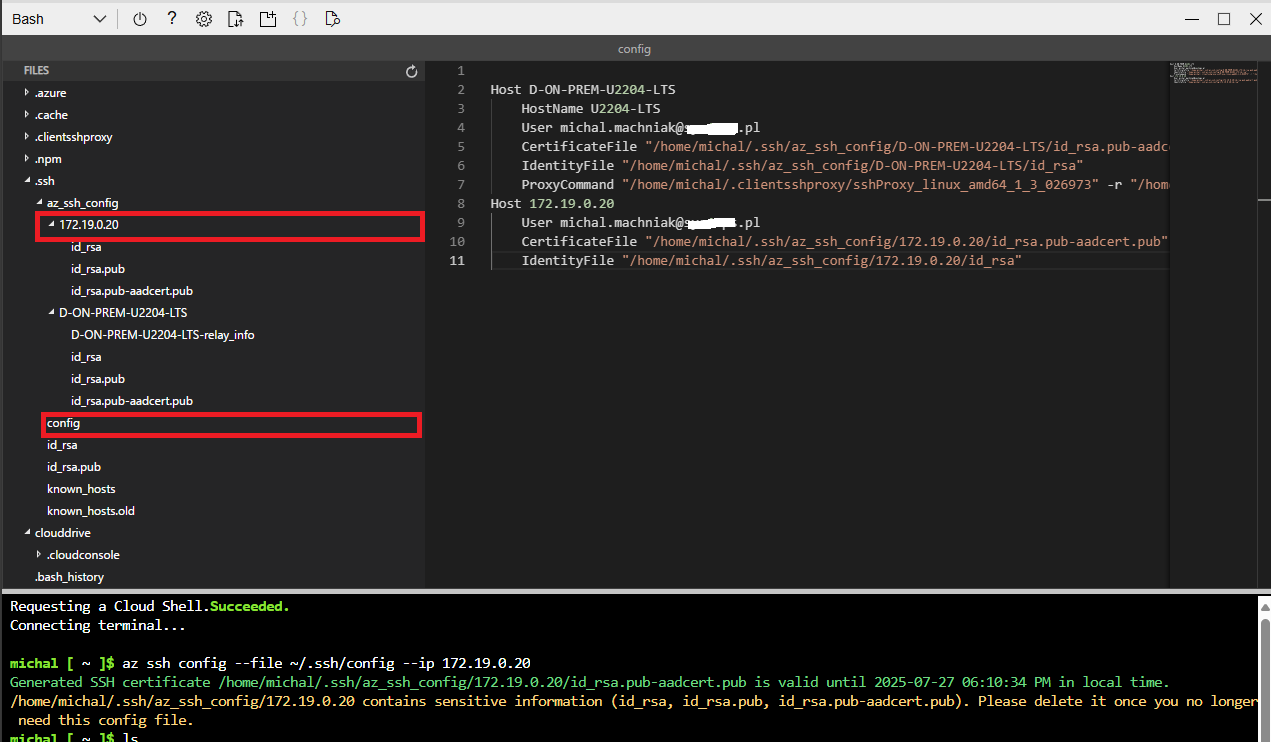

Export SSH configuration for Virtual Machnine

az ssh config --file ~/.ssh/config --ip <server-fqdn or IP>

Import configuration on local SSh client (Windows example)

Create config files for host with on local SSH client in .ssh folder

Host 172.19.0.20
	User michal.machniak@xxxxx.pl
	CertificateFile "C:/Users/Administrator.AD/.ssh/az_ssh_config/172.19.0.20/id_rsa.pub-aadcert.pub"
	IdentityFile "C:/Users/Administrator.AD/.ssh/az_ssh_config/172.19.0.20/id_rsa"

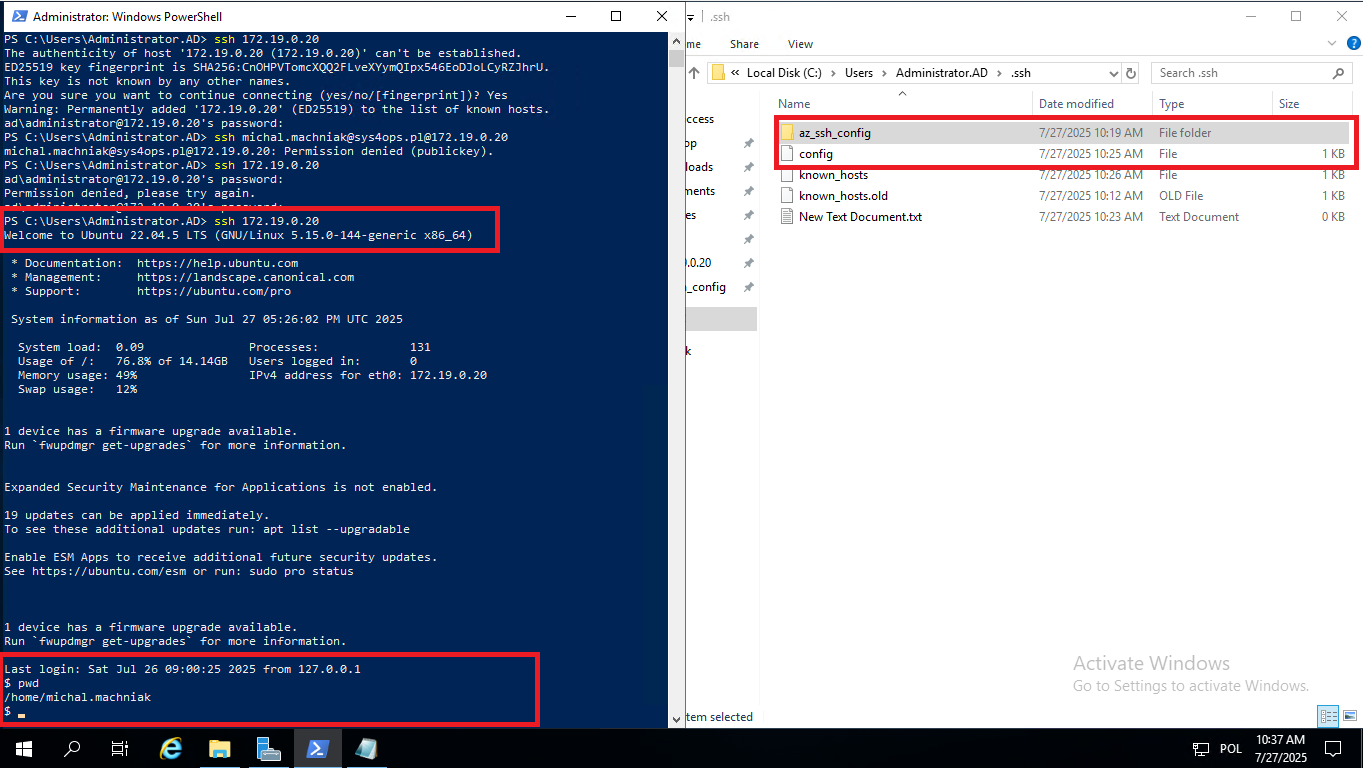

Connect from local to server using Entra ID credentianls

ssh <entra-username>@<server-fqdn or IP>

Your SSH client must support OpenSSH and be configured to request tokens. If needed, install Azure CLI login extension:

az extension add --name ssh

Step 5: Troubleshooting Tips

Ensure your user is assigned the proper Entra ID role.

Make sure the AADSSHLoginForLinux extension is in “Provisioning succeeded” state.

Check /var/log/auth.log on the server for login errors.

Use az ssh arc -d for debugging SSH connection.

Summary

Logging in to Linux servers with Entra ID via Azure Arc improves your security posture and simplifies identity management. By following these steps, you can ensure secure, role-based access to your Arc-connected servers with the power of Entra ID.
